Layered Tables

	Data Structures	Source Location
	WT_LAYERED_TABLE	src/conn/conn_layered.c

Caution: the Architecture Guide is not updated in lockstep with the code base and is not necessarily correct or complete for any specific release.

Layered tables are an access method designed to support distributed systems that leverage shared storage for the majority of a table's data. Generally speaking, a layered table is not a table in the traditional sense, but rather an adapter that splits data access between two layers.

This mechanism enables a single leader node to perform writes to the stable table, while other follower nodes maintain a consistent view by tracking recent changes. Having followers track recent changes allows for two key features:

• Follower nodes can serve read operations on recent data without needing to access the shared storage directly.
• Follower nodes can quickly transition to take over write responsibilities if the current leader (writer) becomes unavailable.

See Disaggregated Storage Roles and Role Changes for connection-wide roles and role changes.

Shared vs local tables

Tables can be distinguished by the backing storage mechanism. A shared table is a table whose data is stored in a shared storage back-end. Whereas a local or regular table is a table whose data is locally, either in-memory or on disk. In a layered table, the stable table is shared, and the ingest table is local.

There are also shared tables that are not part of any layered table (e.g., a shared history store table or a shared metadata table). The key difference between a regular table and a shared table is that the shared one uses the disaggregated block manager.

The following diagram is not meant to strictly represent entities relationships, but rather to aid in understanding the high-level design.

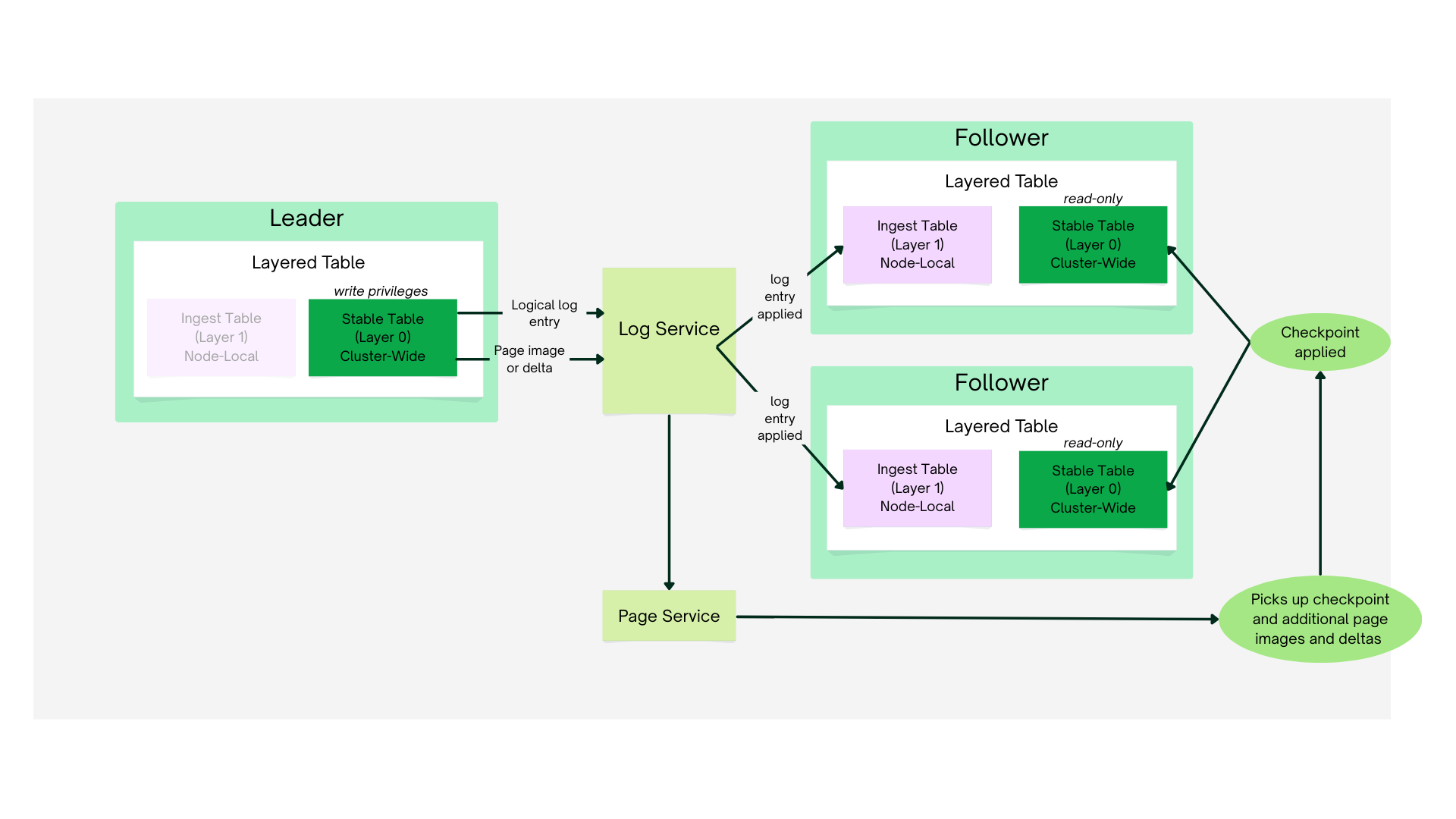

High-level architecture

These semantics are achieved by using two underlying constituents: a shared stable table and an ingest table. The node responsible for writing to shared storage operates directly on a single shared table and has the guarantee that no other node will perform writes to that table. All other nodes will also have an ingest table, which holds a short-term view of recent changes.

The ingest table's view is layered over the shared stable table, so any read operations on a node with both an ingest and stable table will first look for a result in the ingest table, and if no result is found, fall back on the shared table.

Layered tables are primarily for Disaggregated Storage Clusters (DSC) but can also be used outside of DSC for testing purposes, in particular, via local PALI Mock (PALite) infrastructure.

Stable Table:

• A table shared across nodes in the cluster
• Backed by the disaggregated block manager that uses shared storage and supports having multiple different WiredTiger nodes share the same underlying data structure

Ingest Table:

• An in-memory table that stores data that has been changed more recently than what is in the stable table
• Doesn't contain checkpoints
• Supersedes checkpointed content in the stable table
• This table is specific to a particular node

API restrictions

Layered tables support all the regular tables operations, with exceptions listed here:

• All writes, from all nodes, must be timestamped
• On followers, the commit timestamp of a non-prepared transaction and the prepare and durable timestamps of a prepared transaction must be after the latest adopted checkpoint timestamp. They are checked when the timestamp is set. Prepare discovery restores checkpointed transactions with their original prepare timestamps and is exempt from the prepare timestamp check.
• All nodes must use the same URI for the same table
• All nodes must use byte-wise identical keys, values, and timestamps for the same records.
• Table compaction is not supported on layered tables
• Backup cursors will not return information about layered tables
• Bulk cursors are not supported on layered tables
• A table backed by a layered table can only have a single, unnamed column group, whose source is the layered table with the same name

Implementation aspects

Note: This section is closely tied to the source code and may become outdated if not maintained in sync with implementation changes.

Layered tables metadata representation and related files

Each layered table contains three related entries in metadata:

layered:foo.wt
    disaggregated=(page_log=palite),ingest="file:foo.wt_ingest",log=(enabled=false),stable="file:foo.wt_stable"
file:foo.wt_ingest
file:foo.wt_stable

A layered table created through a table: URI with the type=layered config is that table's only column group, so it also has table:foo and colgroup:foo entries, and the column group's source is layered:foo.

Since shared metadata and history store tables are shared but not layered tables, they both have .wt_stable suffixed metadata entries but no associated layered: ones:

file:WiredTigerShared.wt_stable
file:WiredTigerSharedHS.wt_stable
